Tag Archives: PC-7

The “new” Pilatus PC-7 MKX

On Sunday 14 November 2021 the new Pilatus PC-7 MXK trainer aircraft was reveiled. This is in fact a renewed version of the PC-7 Mk II trainer. We already saw it prior to the unveiling. Read more about it below.

Pilatus PC-7 MKX
The PC-7 MKX at Buochs Airport, home of Pilatus Aircraft

In 1994, at the request of the South African Air Force, Pilatus devised a new variant of the popular trainers, the PC-7 MkII. The fuselage of a PC-9 was used and the wings (with suspension points) of the PC-7. The engine used was a Pratt & Whitney Canada PT6A-25C delivering 700 hp (515 kW). This engine has been cut in power to reduce wear and tear and thus reduce maintenance costs. To have an idea, the PC-9 has a Pratt & Whitney engine of 1,149 hp (857 kW).

Pilatus PC-7 MKX
It is very clear that the PC-7 MKX is a mix of the PC-7 and PC-9

With a new glass cockpit, new avionics, improvements in the area of crew comfort and other technical innovations, the PC-7 MKX offers smart state-of-the-art training capability in the Basic Training segment at unrivalled cost, with outstanding robustness and unmatched reliability. The smart Basic Trainer is now available to take on a new generation of student pilots and turn them into first class military aviators.

Pilatis PC-7 MKX

A state-of-the-art cockpit with smart avionics is at the core of the brand-new PC-7 MKX. The cockpit is centred on a three-display philosophy utilising the next generation of high definition screens. It gives the student an easy entry into the world of modern avionics, while practising vital pilot skills using a proven airframe with benign and forgiving flying characteristics. The PC-7 MKX can be used to train the broadest possible range of aircrew, making it the ideal basic trainer for air forces around the world.

Pilatus PC-7 MKX

The PC-7 MKX’s smart avionics suite offers broad capability, allowing maximum flexibility for use in a wide variety of training missions. This ensures that the student can easily transition to these platforms when embarking on the next phase of training. The PC-7 MKX avionics capability is designed as a comprehensive baseline configuration with various add-on options such as synthetic vision system, traffic advisory system, autopilot, cockpit camera and mission debriefing system to meet specific training needs.

Pilatus PC-7 MKX

The cockpit features a large primary flight display and multi-function displays to give students the earliest possible exposure to the technology found in today’s front line assets. The primary flight display allows selection of various flight modes, whilst the left and right displays features a moving map for navigation, a Flight Management System and an Engine Indicating and Crew Alerting System.

A comprehensive set of training products is also available to cover all aspects of ground based training. From the simplest type of training aid, virtual reality tools through to a full flight simulator, all training equipment is of the highest quality and designed to support integrated, progressive learning. This allows the air force to optimise training time and reduce training cost per pilot.

The design of the PC-7 MKX uses conventional semi-monocoque construction for the wing, fuselage and empennage. The primary structure is built of aluminium alloy sheet and extrusion. Combined with precision workmanship, these features provide a high degree of interchangeability as well as easy replacement of parts. The PC-7 MKX is an exceptional trainer built on a solid certification foundation, guaranteed to deliver a lifecycle of at least 30 years.

Sources: Pilatus Aircraft, Aironline

Tour de Suisse – Day 2: Buochs and Emmen

After our first day at Payerne, we initially had the plan to watch the Axalp Fliegerschiessen from the Wildgärst location. However, when we started our walk at 5 in the morning, it just did not feel good. Therefore we changed the plans to try our luck at Emmen and Buochs (ok, and Alpnach).

PC-21 Roulettes
This PC-21 will fly with the Australian Roulettes display team

As we had an early start, it meant that we arrived at Emmen before sunrise. When it started to get light, we started scouting for locations and we did a tour around the field to see what might be parked outside. At that point we also saw that the barrier on the runway was raised and we came to the conclusion that the runway use was not good for us; we would not be able to take any decent pictures.

PC-24 Swiss Air Force
This brand new PC-24 is destined for the Swiss Air Force

A quick change of plans was made, which meant that we headed to nearby Buochs. Buochs (also known as Stans) is the airfield that accommodates the Pilatus aircraft factory. Usually some interesting new aircraft can be found at this location. When we arrived, we already saw an Australian PC-21 at the flight center, which was a nice welcome. Soon after, we heard the start of an engine and the PC-21 departed for a testflight. Straight after that we were treated to a RNLAF PC-7, which was here for modifications. Next to this, we also enjoyed flights of PC-12s and PC-24s (the new Pilatus Jet), one of these is destined for the Botswana Defence Force.

RNLAF PC-7

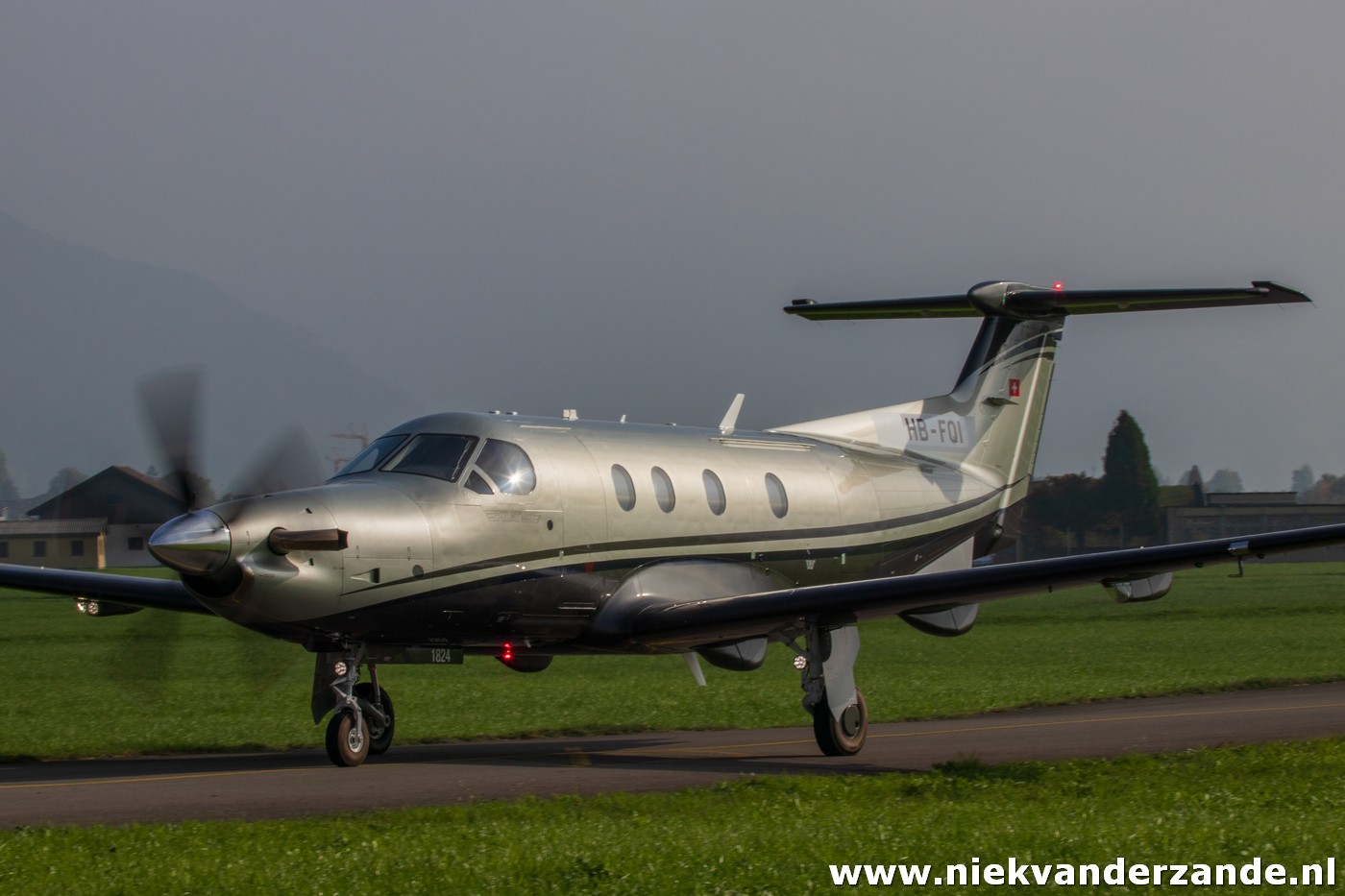

PC-12

PC-21

PC-24

Since we also deserved a lunch break, we drove the short distance to Alpnach for a supermarkt and a visit to the local airbase. At the airfield, we saw that part of the taxitrack to the platform was closed due to work in progress. This meant that helicopters would not pass in front of us. We briefly enjoyed the arrival of an EC.635 and tried to picture the hot pit refuelling of a Cougar. (nice try, no joy)

Cougar Alpnach
Trust me, there’s a Cougar over there

At that point, we also found that at Emmen things had changed, the other runway was no in use, which was much better for photography. As we wanted to have some pictures of the local PC-21s and Patrouille Suisse, the decision was made to make the short hop from Alpnach to Emmen.

At Emmen, we were pleasantly surpised to see that the very rare Diamond DA.42 from Armasuisse was flying a mission. Next to that, we could see a great variety of aircraft like PC-6s, PC-7s, PC-9s, PC-21s, Hornets, F-5s and even drones! The afternoon also saw a flight of the Emmen based Patrouille Suisse for their demonstration at the Axalp Fliegerschiessen.

Diamond DA.42 Armasuisse
The sole Swiss Diamond DA.42 can be flown both piloted and remote controlled

Patrouille Suisse

Flat Eric
Flat Eric catching a ride with Tiger 2

PC-21

Others

When Patrouille Suisse had returned, we left Emmen for our journey back to Brienz. As Buochs was almost on this route, we paid the 3rd visit of the day to this beautiful airfield and were once more treated to an Australian PC-21.
